Scope of application:

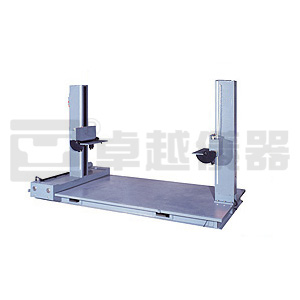

This machine is specially designed to test the damage of the goods when they are dropped after packaging, so that manufacturers can take effective measures to control the damage after packaging and handling.Suitable for large furniture, office tables and chairs, household appliances, packaging...The products can be dropped naked (without falling down of the package) and dropped (both the finished product and the outer package will fall together) to assess the impact strength of the product during handling or damage during falling.
Instrument features:
* this machine simulates the free falling of items at different heights. It adopts double supporting arms and double column structure, with synchronous wheel drive, height lifting and balancing, without the risk of left-right uneven height. The distance between the two columns can be adjusted to facilitate testing of specimens of different specifications.
Design standards:
* this instrument complies with GB/T4 857, 5-92, ISO0244 8-1 972E standard.
Detailed parameters:
* height range :30~150cm
Maximum sample size :200*150*100cm
* test space :200*150cm
* load :150kg
* height adjustment: motor rotation
* arm spacing adjustment: motor drive chain drive mechanism realizes two arm spacing adjustment
* drop surface, edge, Angle
* drop height error + / - 10mm(adjustable)
* horsepower: 1/2 HP
* weight: approx. 1500kg
* power supply: 1 volt, AC220V,6A
