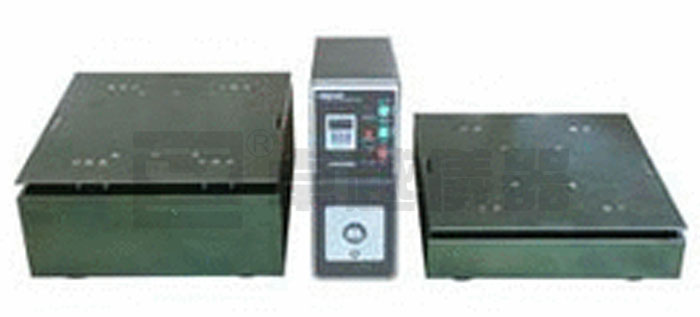

Product description:
This machine is suitable for the vibration test of toys, electronics, furniture, gifts, ceramics, communication, equipment, computer and automobile parts, etc. It is used to inspect its transport resistance or durability uniformity.Design standard: GB/ t2423.5-1995
Product specifications:
* vibration direction: vertical + horizontal
* frequency range 1Hz~600Hz: (±0.1%) can be arbitrarily set.
* vibration motor power (KW) : 2.2kw.
* supply voltage (V) single: 220V±20%
* maximum test load (kg): 0~100kg/ maximum excitation force within the range of 2000kgf.
Vibration table size L*H*Wmm: 500X6X500mm
* frequency range 1~600HZ: frequency/time/amplitude/acceleration can be arbitrarily set.
* sweep frequency range 1~600HZ: sweep frequency/rate/time/amplitude/acceleration can be set arbitrarily.
* precision: frequency can be displayed up to 0.01Hz
* amplitude (adjustable range mmp-p): 0-5mm can be arbitrarily adjusted.
* maximum acceleration g(m/s2): 0~20g(200m/s2) can be adjusted arbitrarily.
* time control: any time can be set (seconds).
* maximum current: 10A.
* cooling mode: natural air cooling.
